Manufacturer Part Number: 1603

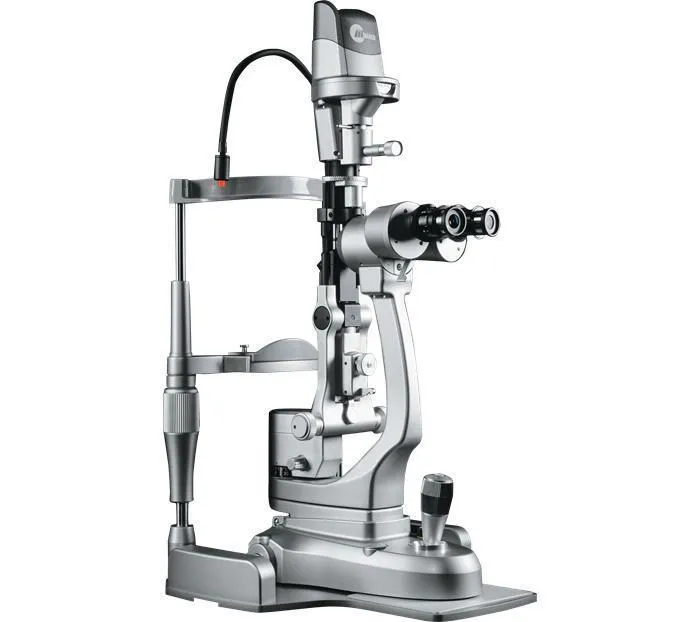

20 Years ago, Marco changed the boundaries of conventional slit lamp design and performance with the original Ultra Series. Today, the Ultra M Series introduces a new era of diagnostic empowerment. Marco has again established the latest standard in slit lamp examinations.

Single-element, high-luminance LED illumination
Standard, 2-power convergent Greenough optics
0-14mm continuously adjustable aperture
Completely integrated (cable free), low voltage electronic system
Cobalt Blue, Red-free, Yellow, Blue LED correction filters
Self-contained headrest & baseplate assembly

Specifications:

Type Binocular Stereomicroscope: Convergent (Greenough)
Light Source: LED
Light Source Configuration: Tower with Tilt
Background Illumination: Not standard (option only)
Light Filters: Blue, Red-free, Blue LED Correction, Yellow
Slit Width: 0-14mm continuous variable
Aperture Diaphragm Diameter: (Ø) 14, 10, 5, 3, 2, 1, 0.2mm
Total # Power Magnifications: 2 (10x, 16x) [3 (25x with 16x eyepieces)]
Magnification Change: 2-position switch revolving objective
Eye Pieces: 10x, (16x optional)
Real Field of View: (Ø) 18, 11.25 (with 10x eyepieces) 15, 9.3mm (with 16x eyepieces)
Interpupillary Adjustment: 52-82mm
Diopter Adjustment Range: ( /-) 8 diopters w 10x eyepieces ( /-) 10 diopters w 16x eyepieces
Horizontal Coarse Movement: 105mm
Horizontal Fine Movement: 15mm
Vertical Movement: 30mm
Fixation Light Source: Red LED on Flexible Arm
Large Patient Chin Rest: Not standard (option only)
Chinrest Elevation: 95mm
Power Supply: AC100V-240V ( /-10%)
Power Consumption: DC5V 2A
Weight: 12.5Kg
